2 Speed 1/2 Ton Electric Chain Hoist Power Trolley 20 ft. G100 Chain M4/H3 220~230/460V Wireless


SKU: PWRT05H3-2SW   UPC: 687700867548
$2,176.38 USD & Free Shipping to commercial locations with dock or forklift
1 in stock - ships in 1-2 business days

Key features

  • Quality is inside: Heavy Duty H3/M4. Aluminum housing, NSK Bearings, USA Chevron Meropa 320 Lub

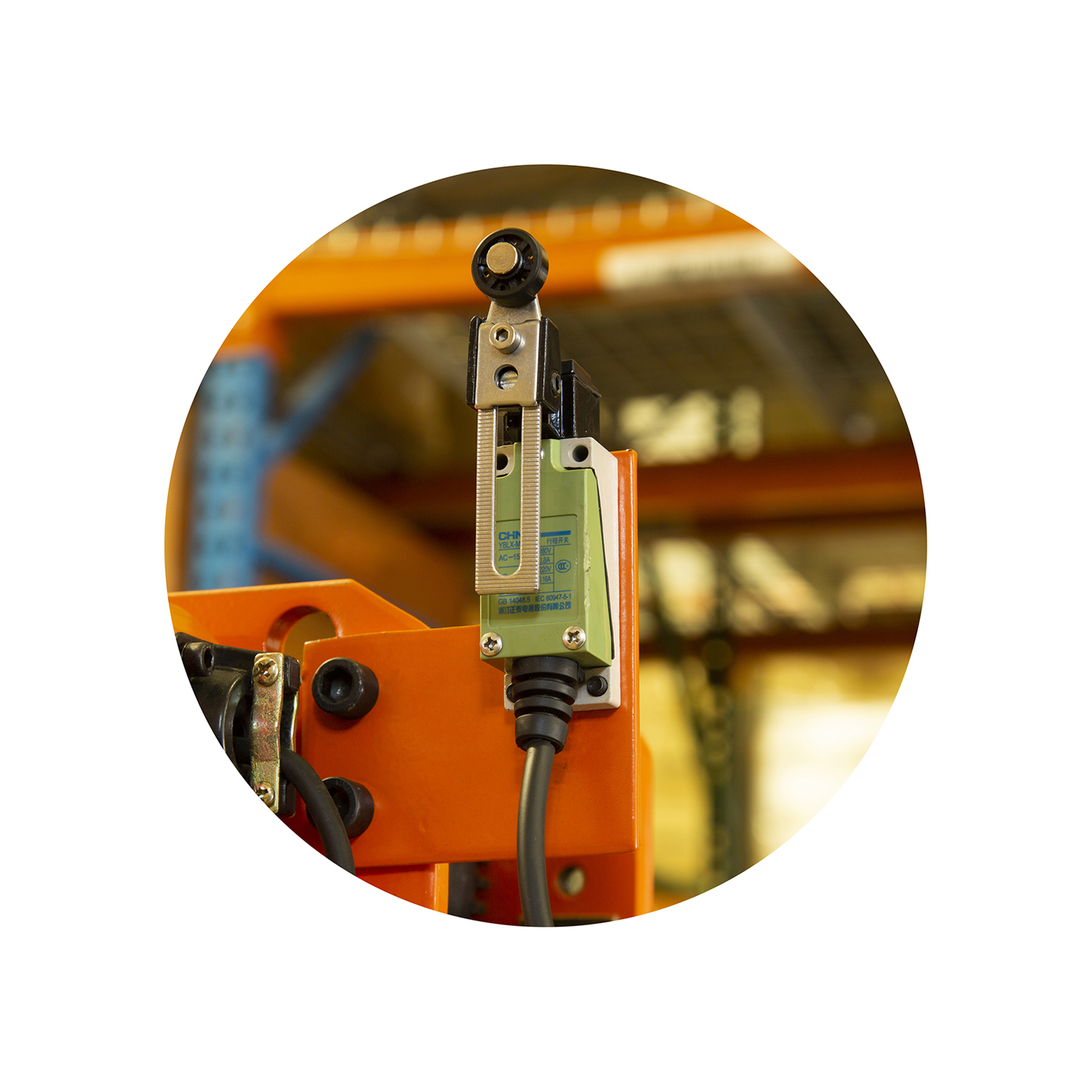

  • German Brand Schneider Contactors, All ways Limit Switches, Emergency Stop

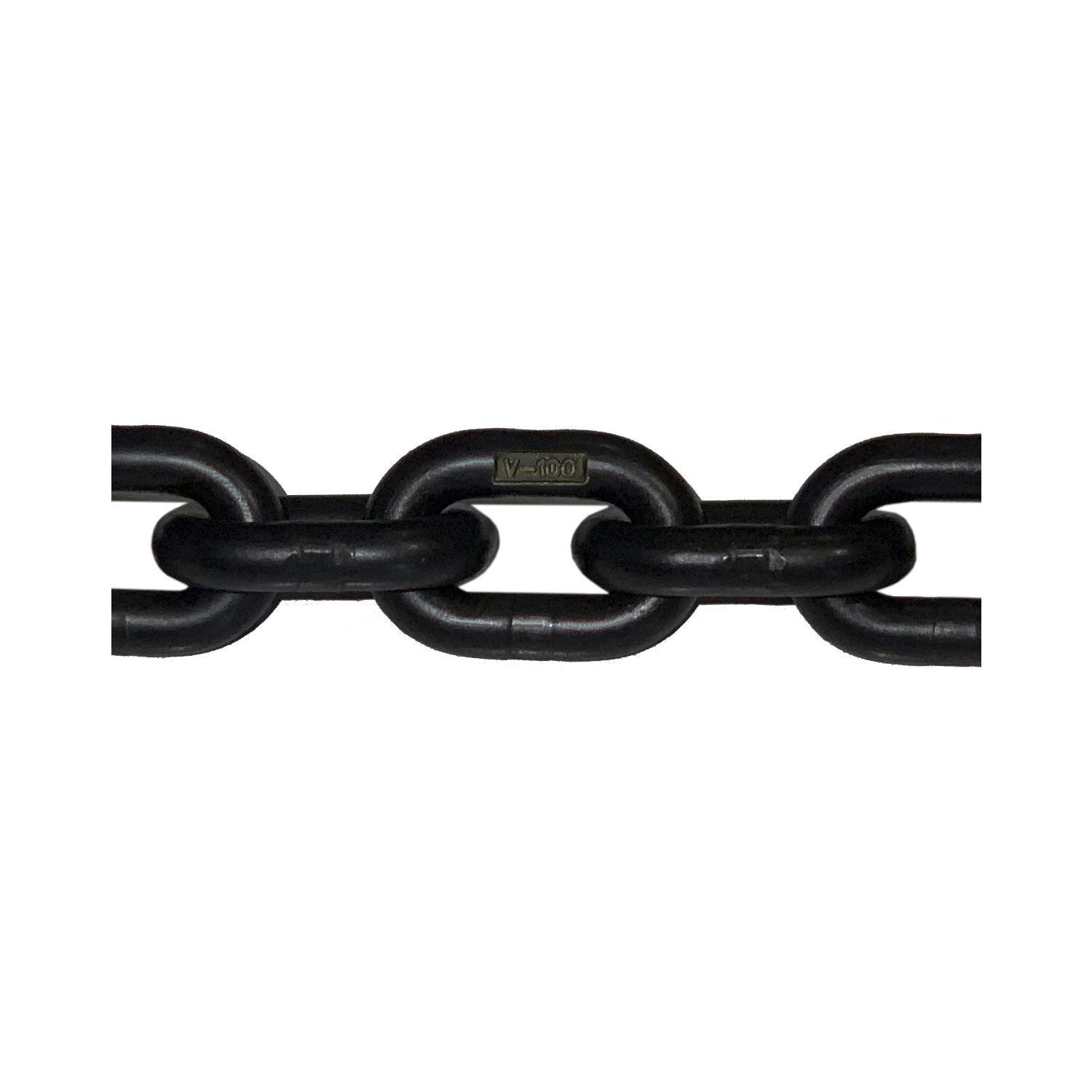

  • Super Heavy Duty G100 Chain, 25% Stronger than G80. Standard ASTM A973
  • US and EC Standards ASME HST-1 , ASME B30.16 , EN14492-2 , EN60204-32
  • 3 Year Warranty, Customer Support and Service in the USA
Artboard 1

Electric Chain Hoist Description

The Wireless 2 Speed Prowinch 1/2 ton Electric Chain Hoist with Power Trolley allows you to easily lift loads. This hoist comes with an electric trolley that can be quickly installed on an I-beam or crane. The powerful motor and three-phase connection are perfect for use in a wide variety of situations and environments. The quick-connect wiring system allows you get set up and started on your project in no time at all.

Prowinch Two Speed Electric Chain Hoist with Power Trolley

All of our Electric Chain Hoists are created with the goal of offering the best price–performance ratio. Key components such as lifespan factors are constantly tested and improved in order to offer the best product for the price.

Key Components

All internal components have been upgraded to meet the highest quality standards. Key electronic components are produced by American or German brands, and we use American-made lubricants to ensure the lifespan of gears and reducers. Final assembly and all tests are performed in the US before shipping to ensure that every unit meets the corresponding standard.

Duty Classification

Duty classification is a key factor when choosing the right unit. These H3 hoists are suitable for general machine shop fabricating, assembly, storage, and warehousing. For uniformly distributed work periods, the hoists have 25% max. operational time per hour and can handle up to 150 starts per hour. When being used for infrequent work periods, the hoist can be operated for 30 minutes from a cold start with up to 200 starts per hour. Operational time ratings are calculated at a 65% load factor, as per ASME HST-1-2012.

Control System

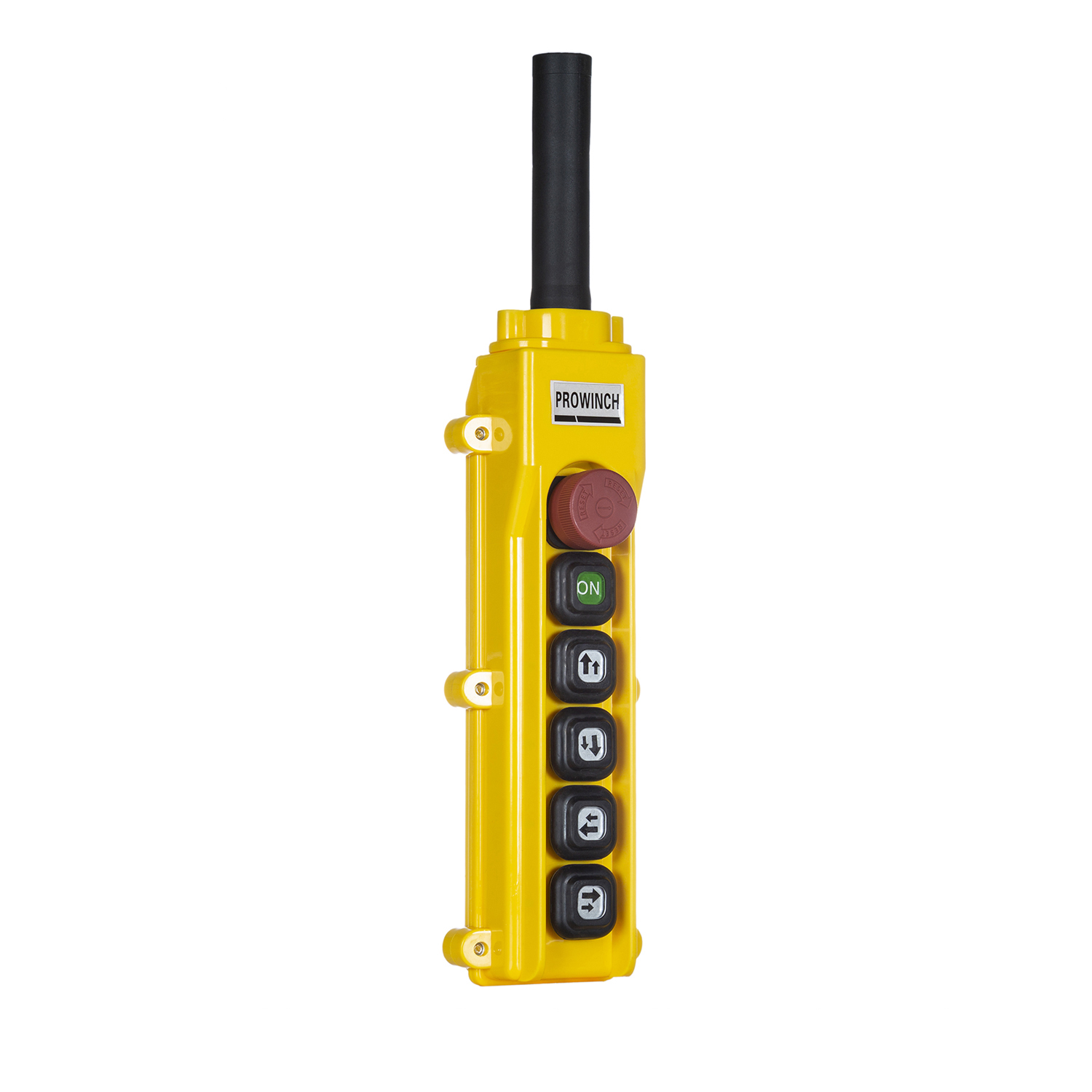

This electric chain hoist comes standard with an industrial wireless remote control and a pendant control. The length of the pendant control is 4 feet less than the lifting height, which allows it to be easily operated from ground-level.

Braking System

The electromagnetic brake system is tested at 125% of the hoist capacity and is designed to automatically engage immediately upon any loss of power.

Technical Specifications

PWRT05H3-2SW
  • Rated Load Capacity 1100 lb / 500 kg
  • Lifting Height 20 ft / 6 m
  • Speed /min 9&26ft/2.7&7.9m@60Hz
    7.6&23ft/2.3&6.9m@50Hz
  • Number of Speeds 2 Speed
  • Optional Voltages 3 Phase 220~240/380/440~480V 50/60Hz
  • USA and Canada Voltage 208~240/440~480V
  • Chile Voltage 380/440~480V
  • Colombia Voltage 208~240/440~480V
  • FCC ID WTX20X04015023E
  • Duty Class H3/M4/1Am/Class C
  • Motor/Engine Power 0.75 kW
  • Motor AMP 3 / 1.5
  • Motor RPM 3456@60Hz 2880@50Hz
  • Motor Brake Yes
  • Insulation Grade F
  • IEC Motor Protection IP55

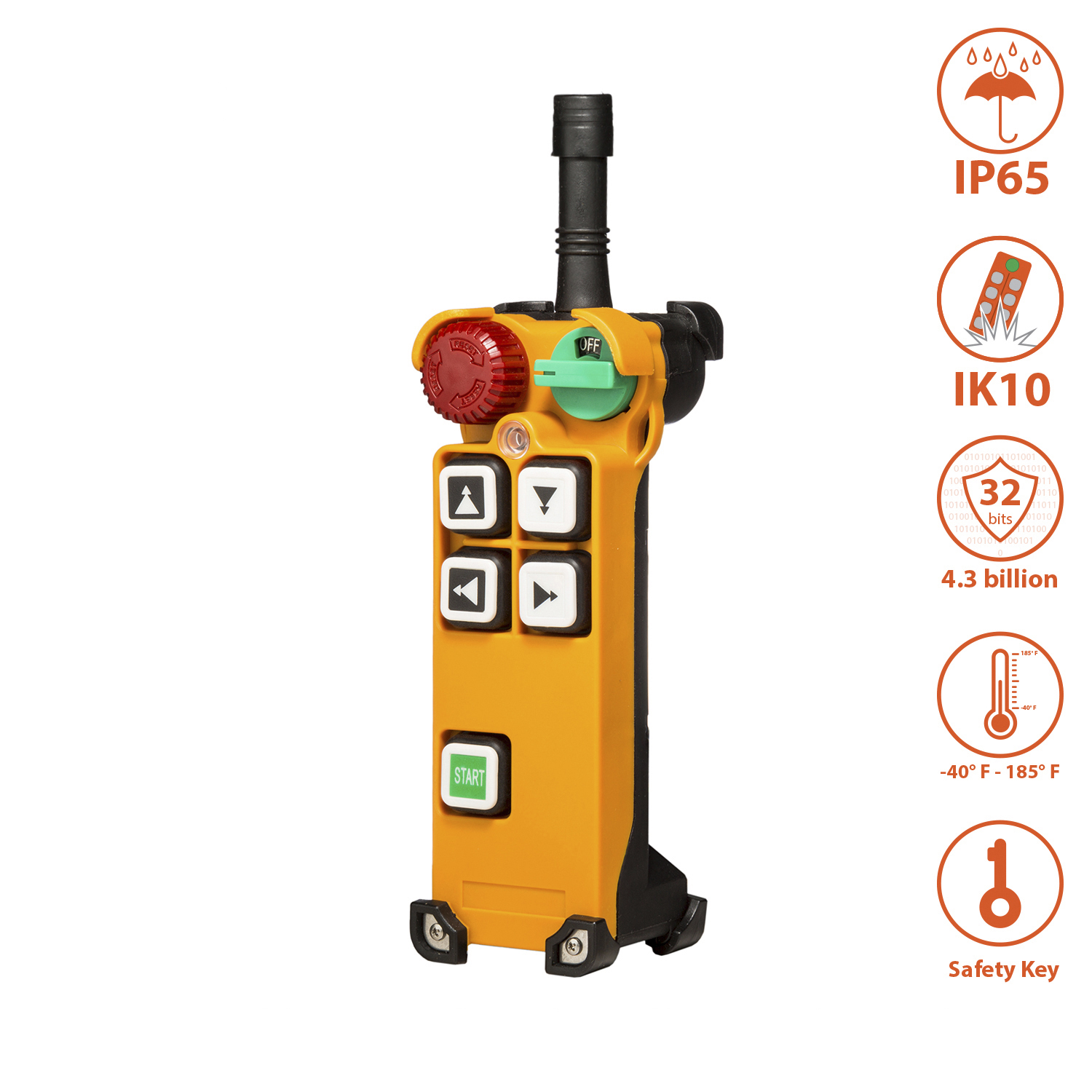

  • Control Wireless F21-4 and Pendant Control
  • Control Voltage 24V

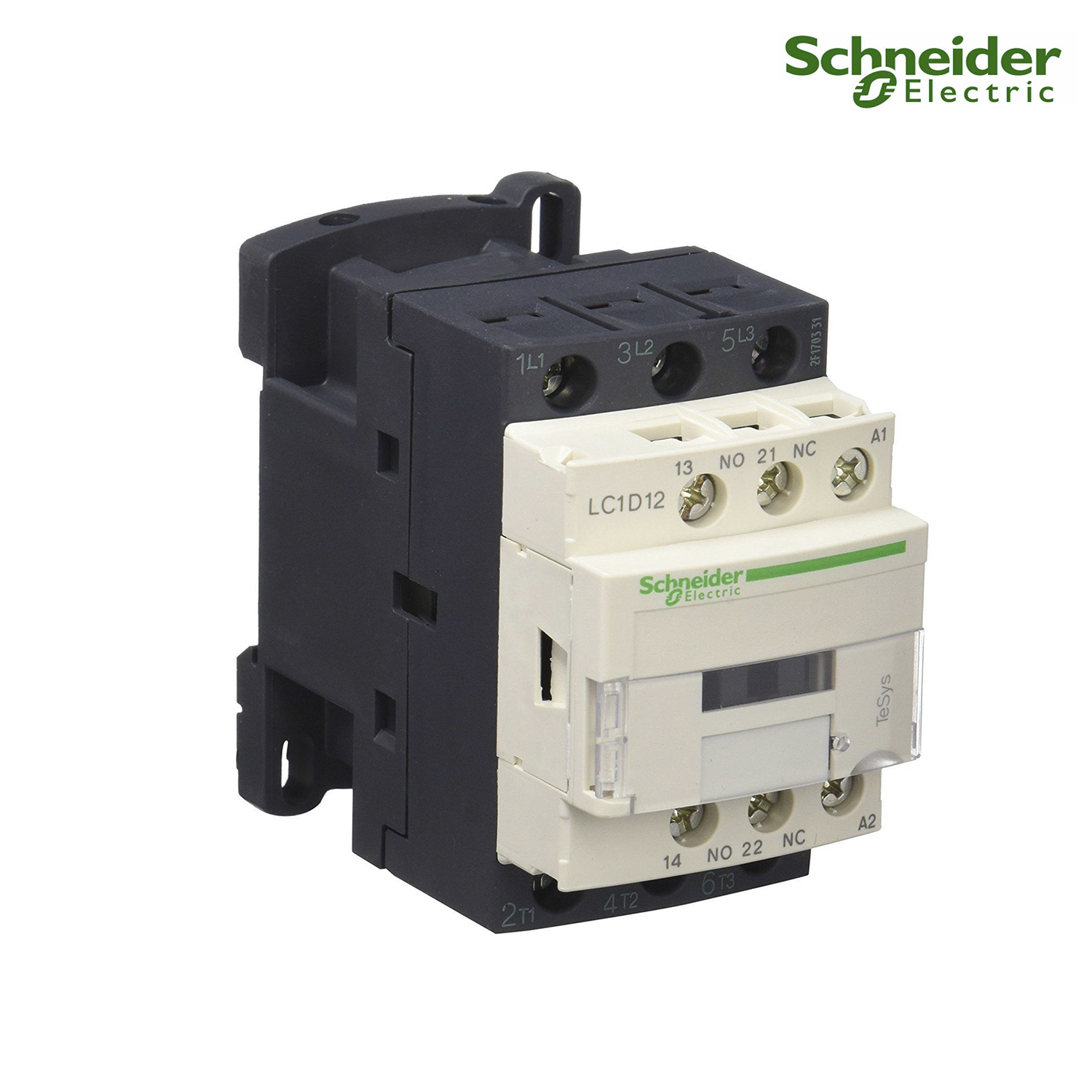

  • Contactor Schneider 12 AMP
  • Chain Type G100
  • Chain Size 6.3 x 19 mm
  • Chain Falls 1
  • Chain Length 20 ft / 6 m
  • Humidity <85%
  • Temperature -4 ~ 104° F / -20 ~ 40° C
  • Trolley Power 0.4 / 0.12 kW
  • Noise Level 81 dB
  • Trolley Speed /min 36 - 68 ft /11 - 21 m
  • Trolley Number of Speeds 2
  • I-Beam Width 52 - 153 mm
  • Minimum Turn Radius 8 ft / 2.5 m
  • Standards ASME HST-1 , ASME B30.16 , B30.17 , EN14492-2 , EN60204-32
  • Warranty 3 Year

Unit Weight & Dimensions

  • T Trolley Motor Width 11 in / 276 mm
  • R Trolley Cover Width 5.6 in / 142 mm
  • H Minimum Headroom 21 in / 525 mm
  • D Depth 11 in / 285 mm
  • W Width 22.5 in / 566 mm
  • J Hook Opening 1 in / 25 mm
  • Total Unit Weight 264 lbs / 120 Kg

Packaging Weight & Dimensions

  • Package 1 Net Weight 524 lbs / 238 Kg
  • Package 1 Gross Weight 264 lbs / 120 Kg
  • Package 1 Length 13 in / 33.02 cm
  • Package 1 Width 29 in / 73.66 cm
  • Package 1 Height 32 in / 81.28 cm
